4K 60HZ HDMI Audio Extractor Converter SPDIF + 3.5MM Output
    Publish time 2021-02-22 16:02

Model number: HDAU

4K 60HZ HDMI Audio Extractor Converter SPDIF + 3.5MM Output
About this item

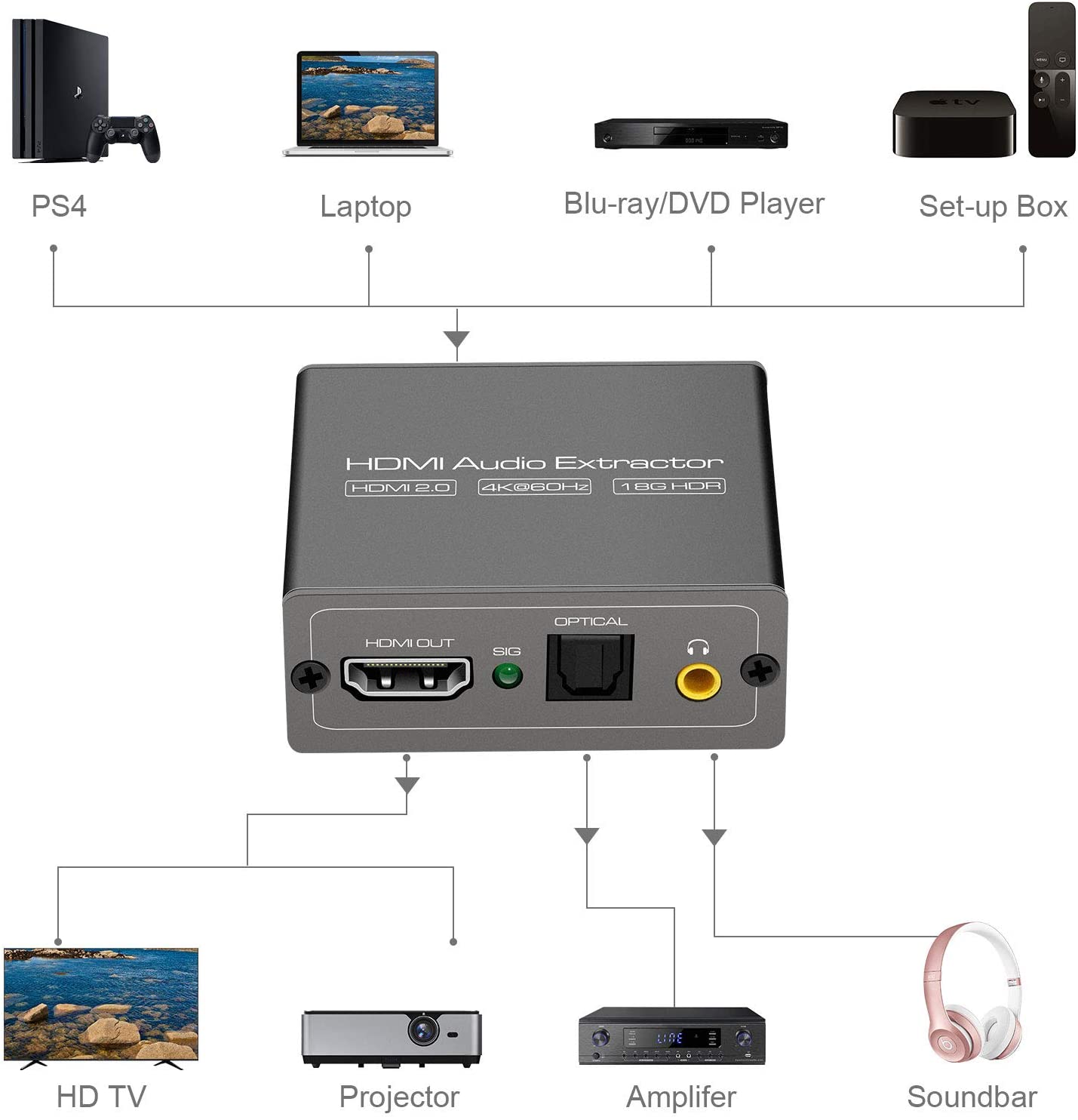

AUDIO EXTRACTION: Extract the digital hdmi audio signal from the HDMI input and convert it to 2 channel analog stereo output or multi-channel Audio (SPDIF) output. NOTE: This unit will only pass Dolby Digital/DTS audio formats, it will NOT decode these formats for the analog output. If using the analog output, make sure your HDMI source is set to PCM audio.

4K Ultra HD with HDMI 2.0: Supports the highest video resolution to 4K 50/60HZ (YUV444). Supports HDMI 2.0b (18Gbps) HDCP 2.2 and DVI compliant; Supports HDR10(We suggest using HDMI2.0 certified cable to get HDR10 compatibility)

AUDIO EDID SETTINGS: 2CH for L/R or SPDIF stereo output; 5.1CH for SPDIF Output, Supports uncompressed audio such as LPCM. Supports DTS Digital / Dolby Digital pass through (Our device does not decode the digital audio, you will still need an end display that is compatible with those formats) ; DOES NOT SUPPORT ARC FUNCTION.

ADVANCED FEATURES: Supports HDMI HIGH Bit Rate(HBR) audio pass through; Audio sample rates up to 192kHZ;10 Bit HDR pass through.; Supports CEC bypass
