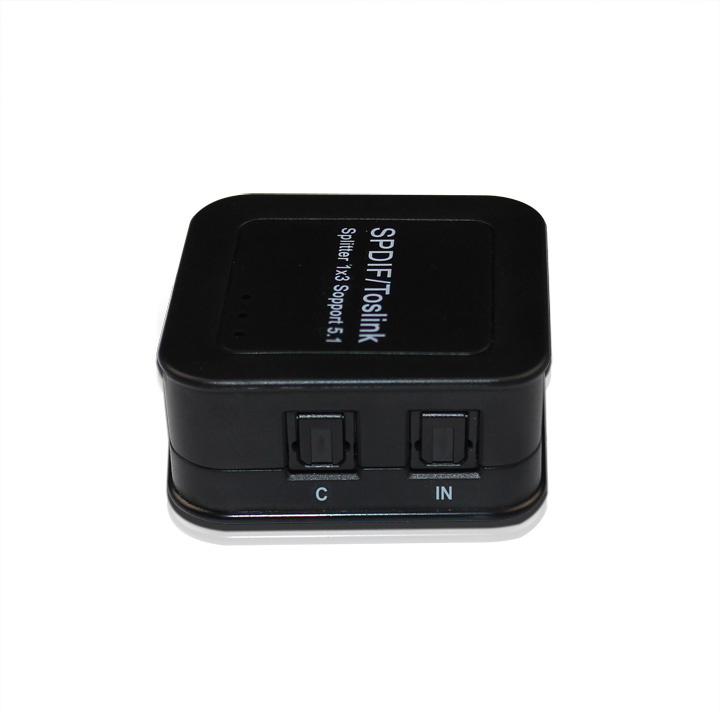

This SPDIF/TosLink Digital Optical Audio splitters can let the user to connect and distribute one  digital optical SPDIF Toslink source to Three amplifier.

FEATURES

One ways of optical fiber signal input splitter to Three sets of SPDIF/TosLink signal  receiving device.

Audio format support : LPCM2.0/DTS/Dolby-AC3

Support signal retiming

Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m,No loss of quality.

Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine

Installs in minutes,Need DC5V/500mA power supply

SPECIFICATIONS:

Support audio format……………………LPCM2.0/DTS/Dolby-AC3

Peak wavelength………………………650nm

Max baud rate…………………………16Mbps

Output cable distance ……≤40m(Use the optical fiber cable loss less the 0.2Db/m )

Max working current…………………………100mA

Power adapter format………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/500mA

Operating Temperature range…………………… (0 to +40℃)

Operating Humidity range…………………………5 to 90%RH (No Condensation)

Dimension (L x W x H)……………………………89x50x24 (mm)

Weight………………………………86g

  The accessories with the machines lists：

1. 5V Power Adaptor

2. Operation Manual
