Introduction

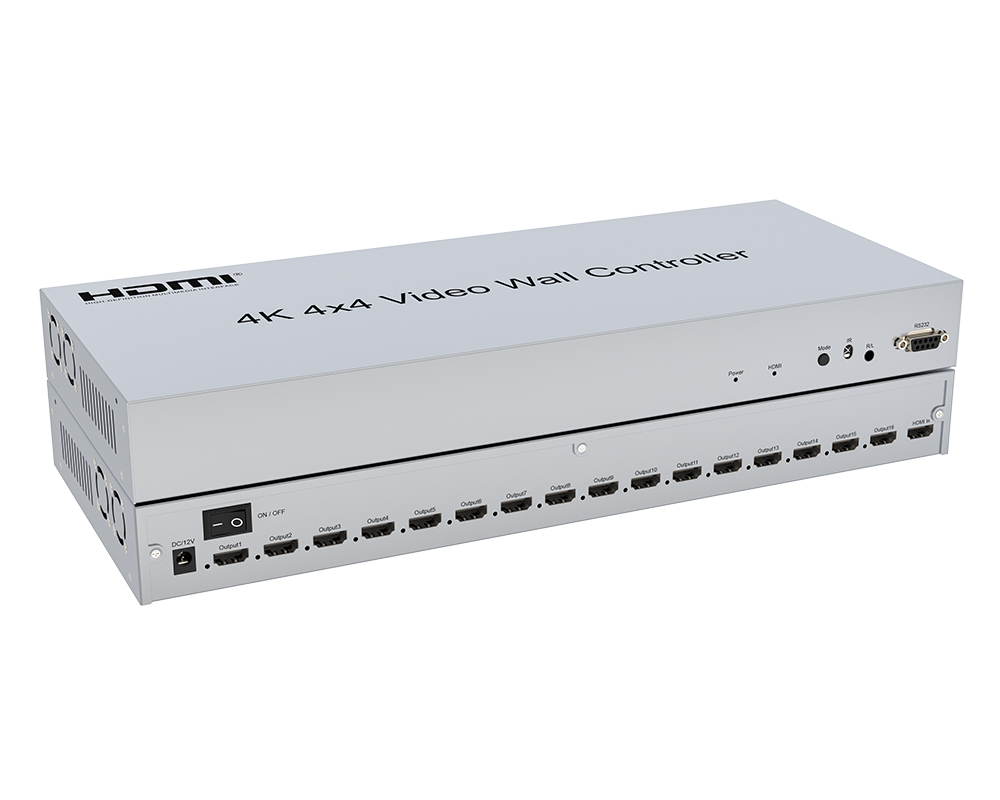

This 4X4 Video Wall Controller, support HDMI input . The video is pushed to multiple

monitors to complete the video Mosaic.It is widely used in teaching, restaurants,station

and other places.

 As a video wall controller, the main function is devided a single complete HDMI HD

image signal to 16 parts and distribute to 16 display units (Rear projection screens, LCD

TV.etc.), which composed to be a dynamic image wall. The operation is plug and play

 Feature:

*Support HDMI video source input;

* Support 16-ways HDMI output;

* Support multiple splicing modes, easy to handle, plug and play；

* Support IR control

Specifications

HDMI input resolution …………………………… the highest support 3840x2160/30Hz

HDMI output resolution ……………………….…........ support 1920x1080/60Hz（one port）

Input cable length ......................................................... ≤8m AWG26 HDMI standard cable

Output cable length ………………….…………............ ≤10M,AWG26 HDMI standard cable

Specifications

 This 4X4 Video Wall Controller, support HDMI input . The video is pushed to multiple

monitors to complete the video Mosaic.It is widely used in teaching, restaurants,station

and other places.

 As a video wall controller, the main function is devided a single complete HDMI HD

image signal to 16 parts and distribute to 16 display units (Rear projection screens, LCD

TV.etc.), which composed to be a dynamic image wall. The operation is plug and play.

Max working current ………………………………………........... 0.9A

Power adapter specifications …...... input AC (50Hz, 60Hz) 100V-240V Output 12V DC/2A

Operating temperature range ………………………………….………........... (-10℃～ +45℃)

Dimension (L x W x H) …………………………………………............. 411x180x45(mm)

Weight ….…..……………………….......….................. 1.97kg
