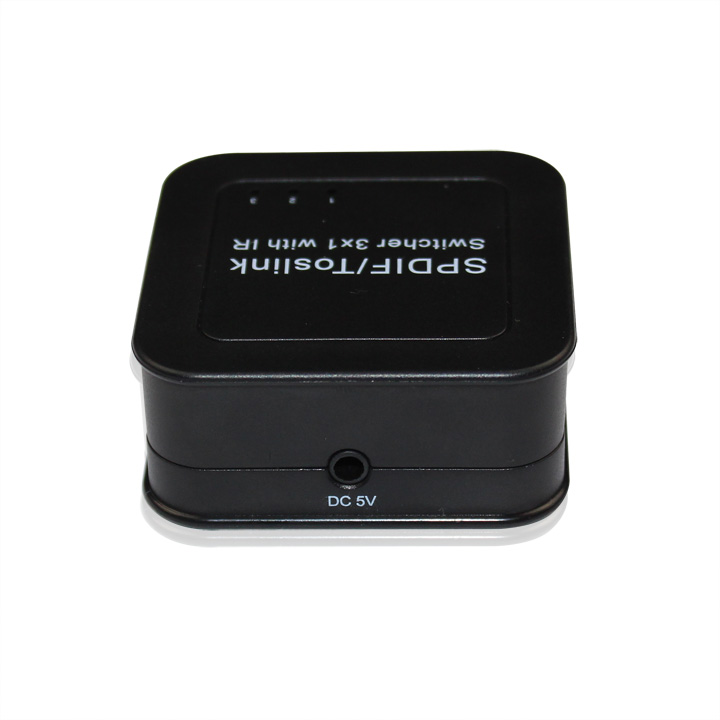

This SPDIF/TosLink Digital Audio Switchers can let the users to connect three digital optical TosLink sources to one optical TosLink (SPDIF) input on your AV amplifier.

INTRODUCTION

FEATURES:

*Three ways of optical fiber signals switch to one sets of SPDIF/TosLink signal receiving device.

*Audio format support : LPCM2.0/DTS/Dolby-AC3

*No loss of quality,Support signal retiming,

*Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.

*The input control can through R/M and also can directly press the button

*Support last time working state memory when power off

*Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine

*Installs in minutes,Need DC5V/500mA power supply

  The accessories with the machines lists：

1. 5V Power Adaptor

2. Operation Manual

3. Remote-control unit

SPECIFICATIONS:

Support audio format…………………………………LPCM2.0/DTS/Dolby-AC3

Peak wavelength………………………650nm

Max baud rate………………………………………………16Mbps

Output cable distance ………≤40m(Use the optical fiber cable loss less the 0.2Db/m )

Max working current…………………………………………100mA

Power adapter format…………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/500mA

Operating Temperature range………………………………………(0 to +40℃)

Operating Humidity range…………………….5 to 90%RH (No Condensation)
