HDMI to SDI Video Converter BNC SDI/HD-SDI/3G-SDI Adapter Support 1080P for Camera Home Theater
    Publish time 2017-03-31 09:39

Model number : HDSDI0101

HDMI to SDI Video Converter BNC SDI/HD-SDI/3G-SDI Adapter Support 1080P for Camera Home Theater

The  HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.97 Gbit/s to give you high resolution signal without any loss.

For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display.

Specification:

Input Interface: 1 x HDMI, 1 x DC 5V-12V
Output Interface: 1 x BNC (SDI/HD-SDI/3G-SDI)
Convert HDMI source to be showing on SDI display
Input/Output Resolution: 480i, 576i, 720p@50/59.94,60, 1080i@50/59.94/60, 1080p@23.97/24/25/29.97/30/50/59.94/60
SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
Power: DC 5V /1A (Support 5V--12V wide voltage input)

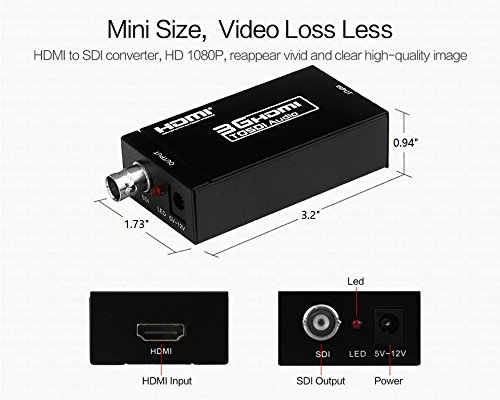

Unit Dimension: 80mm x 41mm x 25 mm
Unit Weight: 108g

Addition for HDMI to SDI:

480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Package Contents:


1 X 3G HDMI to SDI Converter
1 X DC Power Adapter
1 X User Manual
